1
Capture vehicle data
The installed module reads the available vehicle network or OBD-II information and identifies the vehicle.
Vehicle intelligence, connected
Automatic Vehicle Data. Better Fleet Decisions.
FLEETWATCH vehicle hardware captures vehicle identity, mileage, engine hours and available diagnostic information—then transfers it electronically to your FLEETWATCH system.
Purpose-built to work with FLEETWATCH fuel and fluid management.
Vehicle IDAutomatically identified
Mileage & HoursCaptured electronically
Fleet DataReady for reporting
Automatic Vehicle ID
Reduce manual entry at the service lane.
Mileage & Engine Hours
Keep operational records current.
Diagnostic Data
Capture available vehicle fault information.
Integrated Fluid Records
Connect usage data to each vehicle.
Less manual entry. More reliable data.
Capture vehicle information without adding steps to the service lane.
Vehicle information becomes more valuable when it is collected consistently. FLEETWATCH hardware helps automate the transfer of vehicle data so staff can focus on servicing the fleet instead of recording numbers by hand.
- Associate mileage, engine hours and fluid transactions with the correct vehicle.
- Make current vehicle information available for reporting, reconciliation and maintenance workflows.
- Use hardware options designed for heavy-duty vehicle networks or standard OBD-II connections.
How it works
From the vehicle to your FLEETWATCH records.
A straightforward flow connects vehicle information with the fuel and fluid data your operation already uses.
2
Transfer electronically
Data is transmitted through compatible FLEETWATCH receiving hardware when the vehicle reaches the service area.
3
Connect the record
Vehicle information can be combined with fuel and fluid transactions for reporting and reconciliation.
Vehicle hardware
Choose the connection that fits your fleet.
Both options automate vehicle identification and mileage collection. The right unit depends on the vehicle interface and the level of data available.
Heavy-duty vehicles
JX200 + TX200
J1939 / J1708 Data Logger & RF Transceiver
The JX200 connects to an existing SAE J1939 or J1708 vehicle connector and works with the TX200 to report available vehicle information to compatible FLEETWATCH receiving hardware.
- Vehicle number and life-to-date mileage
- Available engine and transmission data
- Last 10 unique active fault codes
- Wireless programming after installation
More technical detail
Fault records can include the subsystem identifier, failure mode identifier, and the date and time the latest occurrence began. The available information depends on what the vehicle engine and transmission electronics provide through the J1939/J1708 connection.

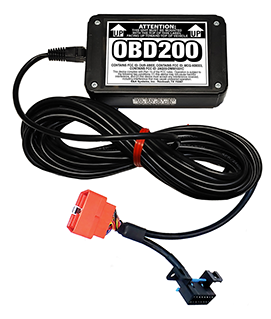

OBD-II vehicles
OBD200
OBD-II Mileage & Data Logger Module
The OBD200 connects to a vehicle's existing OBD-II diagnostic port to automatically count and record miles traveled, then transmit the programmed vehicle number and mileage when it receives a compatible beacon signal.
- Automatic life-to-date mileage records
- Preprogrammed vehicle number
- Battery and coded device status data
- Integration with fuel and fluid records
More technical detail
Collected data can be sent directly to an output device for mileage reporting or combined with information from other FLEETWATCH devices for automatic vehicle and fluid transaction records.
Quick comparison
Which vehicle module is right for you?
| Capability | JX200 + TX200 | OBD200 |
|---|---|---|
| Primary vehicle connection | SAE J1939 or J1708 | OBD-II diagnostic port |
| Best suited for | Heavy-duty transit vehicles with supported electronic engine/transmission data | Vehicles equipped with a compatible OBD-II port |
| Core information | Vehicle ID, mileage, engine hours and available network data | Vehicle ID, mileage and coded device status |
| Fault information | Can report available active fault codes and timestamps | Data available depends on the vehicle and configuration |
| FLEETWATCH integration | Combines vehicle data with fuel and fluid transactions | Combines mileage and vehicle ID with fuel and fluid transactions |
One connected record
Vehicle information becomes more useful when it is connected to every service transaction.
Integrated with the FLEETWATCH Fluid Management System, vehicle hardware supports automatic collection of vehicle number, mileage, engine hours and quantities of fuel and other fluids dispensed.
Explore the FLEETWATCH SystemVehicle identityConnect each transaction to the correct asset.
Mileage & engine hoursSupport maintenance and utilization records.
Fuel & fluid quantitiesReconcile usage by vehicle and transaction.
Reporting-ready dataBring operational information together.
Connect your fleet
Ready to automate vehicle data collection?
Talk with S & A Systems about your vehicle interfaces, service-lane workflow and the FLEETWATCH hardware that fits your operation.
